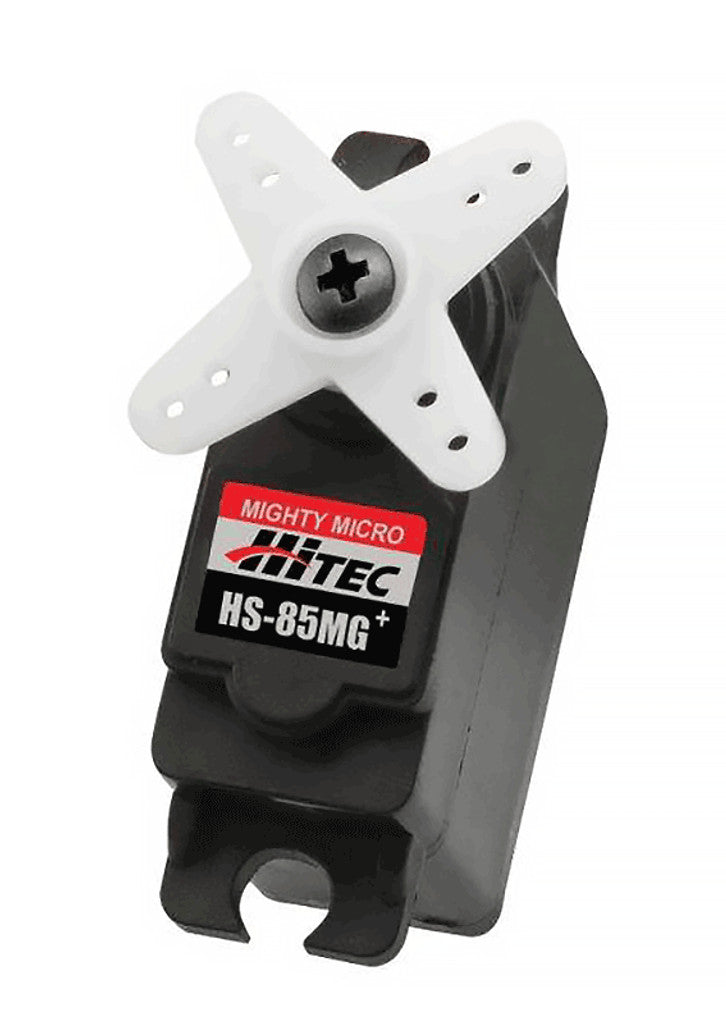

HITEC HS-85MG MIGHTY MICRO SERVO METAL GEAR HRC32085S

The HS-85MG features a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.

Features

• High Torque and Precision Centering
• Rugged Metal Gears
• Ball Bearing-Supported Output Shaft
• Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required

Operating Voltage Range (Volts DC):   4.8V ~ 6.0V
Speed (Second @ 60°) :  0.16 ~ 0.14
Maximum Torque Range oz. / in.:   42 ~ 49
Maximum Torque Range kg. / cm. :  3.0 ~ 3.5
Dead Band Width:    8 µs
Dimensions (Inches):   1.14 x 0.51 x 1.18
Dimensions (Metric):   29.0 x 13.0 x 30.0
Weight (Ounces):     0.77
Weight (Gram):     21.9
