Spectrum Receiver and Accessories

AR9300 DSM2

9-Channel

Carbon Fuse Receiver

SPMAR9300  $199.99

Key Features

• DSM2 technology
• DuaLink® technology
• MultiLink
• QuickConnect™ with brownout detection
• Streamlined case for installation versatility
• Feeder antennas offer superior RF coverage mounted on the outside of the fuselage
• Molded antenna exit guides
• Flight Log compatible
• Preset Failsafe
• Includes DVD installation and setup video
• US patent 7,391,320

Overview

DSM2 6-Channel

Carbon Fuse Receiver

SPMAR6255 $79.99

Key Features

• 6-channel receiver optimized for carbon fiber fuselage installations
• Compact endpin design is ideal for F5D and hand launch sailplanes with small cross sections
• Offers superior RF coverage with through-the-fuselage feeder antennas
• Includes one internal receiver with two 4-inch (101mm) feeder antennas
• Red LED indicates number of holds
• Preset failsafe system on all channels optimized for sailplane and F5D applications
• QuickConnect™ with Brownout Detection
• 2048 Resolution
• Flight Log Compatible
• Aircraft Telemetry Compatible
• Preset Failsafe on all channels

Overview

Spektrum’s 6-channel compact receiver, designed for carbon fiber fuselage installation is an ideal pick for any hand launch or discus launch glider (DLG) pilot. With 2048 resolution and full range capabilities the AR6255 can still fit in even the smallest of spaces. It’s built-in data port is compatible with Spektrum’s Flight Log and telemetry modules.Note: The AR6255 receiver is not compatible with the Spektrum DX6 parkflyer
transmitter.

Carbon Fuselage

Remote Receiver

SPM9546  $39.99

FOR DSM2

RECEIVER ONLY

Overview

The remote receiver includes one 24-inch extension; however, various lengths of receiver extensions can be purchased allowing various placement options for mounting purposes. Additional remote receiver extensions are available in 6, 9, 12, 24 and 36-inch lengths.

AR6115e 6-Channel DSMX Microlite Receiver: End Pin

SPMAR6115e   $49.99

Overview

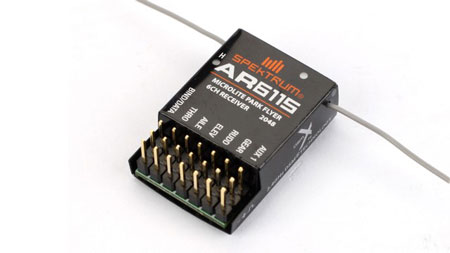

AR6115 6-Channel DSMX Microlite Receiver, SPMAR6115

SPMAR6115 $49.99

Overview

This is the Spektrum AR6115 DSMX Microlite 6-Channel Receiver. Spektrum’s 2.4GHz DSMX technology gets even smaller with the AR6115 6-channel DSMX Microlite Park Flyer Receiver. Weighing in at less than 3.5 grams makes the AR6115 the lightest 6-channel conventional plug aircraft receiver on the market! Antenna locations give the AR6115 improved signal path diversity. The receiver also features a red LED (labeled with H) that indicates the number of holds that have occurred since the receiver was last powered on. The AR6115 is compatible with all aircraft DSMX radios and module systems. It is designed for parkflyer use only.

NOTE: The AR6115 receiver is not compatible with the DX6 park flyer radio system.

Features:

• 6-channel park flyer receiver
• QuickConnect™ with Brownout Detection
• Vertical Pin configuration
• Red LED indicates number of holds

Full Range Sport Receiver

   SPMAR600 $59.99

Key Features

• Compact and lightweight design makes for easy installation
• 6 channel full range sport receiver
• Flight log and telemetry compatible

Overview

The AR600 is the affordable way to equip your sport plane or trainer with the speed, and reliability of DSMX control. And finding room to mount it is easy. Its lightweight, compact case design easily fits into any fuselage, including those of most park flyers.

NOTE: The AR600 receiver is not compatible with the original DX6 park flyer radio system.

Spectrum Neck Strap

SPM300    $11.99

Key Features

• Rugged gray nylon-blend strap

• Adjustable length

• Chromed metal hook

• Features Spektrum™ logo in orange

Spectrum Voltage Protector

SPM1600     $6.00

Key Features

• For DSM system
• Prevents voltage drops to receiver
• Plugs into any open channel slot

Overview

Spectrum Sub-Micro Digital High-Speed Aircraft Servo

SPMA3010    $18.49

A3010 Sub-Micro Digital Hi Speed Aircraft Servo Specs:

Type: Digital

Application: Slow and Park Flyer Aircraft

Torque: 18 oz-in (1.3 kg-cm) @ 4.8V / 22 oz-in (1.6 kg-cm) @ 6V

Speed: .09 sec/60 degrees @ 4.8 / .08 sec/60 degrees @ 6V

Dimensions: .93 in. x .45 in. x 1 in. (23.6 x 11.5 x 25.5mm)

Weight: .3 oz (8.6 g)

Bushing Or Bearing: Single Bearing

Motor Type: Coreless

Connector Type: Z-connector

Gear Type: Nylon

Gear Material: Plastic

Voltage: 4.8 or 6.0V (4 or 5 cell)

Ideal for any slow and park flyer aircraft

Spectrum Sub-Micro Digital High-Speed Metal Gear Aircraft Servo

SPMA3020    $24.99

A3020 Sub-Micro Digital Hi Speed Aircraft MG Servo Specs:

• Type: Digital
• Application: Slow and park flyer aircraft
• Torque: 18 oz-in (1.3 kg-cm) @ 4.8V / 22 oz-in (1.6 kg-cm) @ 6V
• Speed: .09 sec/60 degrees @ 4.8 / .08 sec/60 degrees @ 6V
• Dimensions: .93 in. x .45 in. x 1 in. (23.6 x 11.5 x 25.5mm)
• Weight: .44 oz (12.6g)
• Bushing Or Bearing: Single Bearing
• Motor Type: Coreless
• Connector Type: Z-connector
• Gear Type: Metal
• Voltage: 4.8 or 6.0V

Ideal for any slow and park flyer aircraft

Spectrum Sub-Micro Digital High-Torque Aircraft Servo

SPMA3030    $18.49

A3030 Sub-Micro Digital Hi Torque Aircraft Servo Specs:

• Type: Digital
• Application: Slow and park flyer aircraft
• Torque: 23 oz-in (1.66 kg-cm) @ 4.8V / 28 oz-in (2 kg-cm) @ 6V
• Speed: .12 sec/60 degrees @ 4.8 / .10 sec/60 degrees @ 6V
• Dimensions: .93 in. x .45 in. x 1 in. (23.6 x 11.5 x 25.5mm)
• Weight: .3 oz. (8.6 g)
• Bushing Or Bearing: Single Bearing
• Motor Type: Coreless
• Connector Type: Z-connector
• Gear Type: Nylon
• Gear Material: Plastic
• Voltage: 4.8 or 6.0V

Ideal for any slow and park flyer aircraft

Spectrum Sub-Micro Digital High-Torque Metal Gear Aircraft Servo

SPMA3040    $18.49

Key Features

A3040 Sub-Micro Digital Hi Torque Aircraft MG SX Specs:

• Type: Digital

• Application: Slow and park flyer aircraft

• Torque: 23 oz-in (1.7 kg-cm) @ 4.8V / 28 oz-in (2 kg-cm) @ 6V

• Speed: .12 sec/60 degrees @ 4.8 / .10 sec/60 degrees @ 6V

• Dimensions: .93 in. x .45 in. x 1 in. (23.6 x 11.5 x 25.5mm)

• Bushing Or Bearing: Single Bearing

• Motor Type: Coreless

• Connector Type: Z-connector

• Gear Type: Metal

• Voltage: 4.8 or 6.0V

Ideal for any slow and park flyer aircraft

A5040 Mini Digital Aircraft Metal Gear Servo

$27.99

A5040 Mini Digital Aircraft Metal Gear Servo

SPMSA5040

• Size Category: Minis and Micros

• Type: Digital

• Application: 25 - 32 size airplanes

• Torque: 50 oz-in (3.6 kg-cm) @ 4.8V, 66 oz-in (4.8 kg-cm) @ 6V

• Speed: 0.12 sec/60° @ 4.8V, 0.10 sec/60° @ 6V

• Length: 1.3 inch (32.8mm)

•  Width: .58 inch (14.7mm)

• Height: 1.1 inch (27.4mm)

•  Weight: 0.7 oz (21.6g)

• Bushing Or Bearing: Bearing

• Bearing:Dual

• Motor Type: Coreless

• Gear Type: Metal

• Voltage: 4.8 - 6V

Overview

 The A5040's extremely tough metal gear train, digital precision and incredible .10 transit time is ideal for 25-32 size aircraft.

SPMSA6050 Standard Aircraft Servo

$16.99

• Size Category: Standard

• Type: Analog

• Application: 40 - 60 size airplanes

• Torque: 47 oz-in (3.4 kg-cm) @ 4.8V, 58 oz-in (4.2 kg-cm) @ 6V

• Speed: 0.16 sec/60° @ 4.8V, 0.14 sec/60° @ 6V

• Length: 1.5 inch (38.3mm)

• Width: .72 inch (18.4mm)

• Height: 1.44 inch (36.6mm)

• Weight: 1.28 oz (36.5g) Bushing Or Bearing: Bearing

• Bearing: Single

• Motor Type: Cored

• Gear Type: Nylon

• Voltage: 4.8 - 6V

Overview

 The A6050's plastic gear train and class leading .14 transit time is ideal for any 40-60 size sport trainer aircraft.

The A6050 offers class leading performance at a great price.

SPMSA6060 Standard Digital Aircraft Servo

$19.99

• Size Category: Standard
• Type: Digital Application: 40 - 60 size airplanes
• Torque: 47 oz-in (3.4 kg-cm) @ 4.8V, 58 oz-in (4.2 kg-cm) @ 6V
•  Speed: 0.16 sec/60° @ 4.8V, 0.14 sec/60° @ 6V
• Length: 1.5 inch (38.3mm)
• Width: .72 inch (18.4mm)
• Height: 1.44 inch (36.6mm)
• Weight: 1.28 oz (36.5g)
•  Bushing Or Bearing: Bearing
• Bearing: Single
• Motor Type: Cored
•  Gear Type: Nylon
•  Voltage: 4.8 - 6V

Overview

 The A6060's plastic gear train digital precision and class leading .14 transit time is ideal for any 40-60 size sport sport aircraft.

Spectrum Remote Receiver

SPM9545 $34.99

DSM2 ONLY

NOT FOR USE WITH DSMX RECEIVERS

Key Features

• Includes 24-inch Remote Receiver Extension
• Replacement antenna for the AR6200, AR7000 and AR9000 receivers
• Optional second remote receiver for the AR9000 receiver

Overview

The remote receiver includes one 24-inch extension; however, various lengths of receiver extensions can be purchased allowing various placement options for mounting purposes. Additional remote receiver extensions are available in 6", 9", 12", 24"

 9-Channel DSMX Receiver

   SPMAR9010 $169.99

Key Features

Key Features

• 9 channels
• External and internal receiver
• Patented DuaLink technology
• Patent pending ModelMatch prevents flying a model using the wrong model memory (feature does not work with module systems)
• ServoSync (feature does not work with module systems)
• SmartSafe failsafe system
• US patent 7,391,320

The AR9010 combines two internal receivers and one remote receiver for path diversity and ultimate radio installation flexibility. The radio system simultaneously transmits on two frequencies creating dual RF paths. This dual path redundancy, plus the fact the remote receiver(s) is located in a different location, exposes each receiver to a different view of the RF environment providing unmatched path diversity.

A second remote receiver (SPM9645) can be added to the system to increase the receiver’s view of the RF link. This option might work well in giant-scale aerobatic planes or jets where installations become challenging. Remote receiver extensions are available in 6”, 9”, 12”, 24” and 36” lengths to provide a variety of installation options.

Overview

Spektrum’s optional Flight Log (SPM9540) is compatible with the AR9010. The Flight Log displays the receiver’s real-time voltage. It also shows individual internal and remote receivers' RF link data and overall system RF link performance.

While the optional remote receiver and Flight Log are not necessary to operate the AR9010, some large or complex models may benefit from having these items included in the setup. Every model is unique, and Spektrum’s receiver solutions allow you to customize the radio installation to match the unique demands of all your radio system installation needs.

AR6210 6-Channel DSMX Receiver

   SPMAR6210 $79.99

Key Features

AR6300 DSM2 Nanolite 6-Channel receiver

SPMAR6300 $49.99

Key Features

• DSM2 Spread Spectrum
• Only 2 grams
• JST connectors
• Extremely thin and compact

Overview

When it comes to lightweight 3D foamies and indoor slow flyers, every ounce you can eliminate means better performance and longer flight times. Weighing in at a scant 2 grams, Spektrum’s AR6300 is the perfect receiver for these types of applications.

Not simply because it’s so small, but because it gives you the superior response and interference protection of Spektrum’s patent pending DSM2™ technology. Its JST connecters are compatible with Spektrum’s programmable DSP60J Digital Super Sub-Micro Servo (SPMDSP60J).

Spektrum DSMX Carbon Fuse Remote Receiver

  SPM9645 $34.99

FOR USE WITH DSMX RECEIVER ONLY

Key Features

Key Features:
• Includes a 24-inch remote receiver extension
• Compatible with all Spektrum DSMX aircraft receivers that utilize remote receivers
• QuickConnect™

AR7010 DSMX

7-Channel Receiver

SPM7010 $89.99

Key Features

Key Features

• 7 channels
• Includes patented MultiLink redundant receiver technology
• Utilizes patented DuaLink dual frequency diversity system
• Internal and one remote receiver
• Patent pending ModelMatch prevents flying a model using the wrong model memory (feature does not work with module systems)
• ServoSync (feature does not work with module systems)
• Flight Log Compatible
• SmartSafe failsafe system

  Overview

  The AR7010 combines an internal and remote receiver, offering superior path diversity.  The radio system simultaneously transmits on two frequencies, creating dual RF paths.  This dual path redundancy, plus the fact each of the two receivers is located in a slightly different location, exposes each to a different RF environment and creates a bulletproof RF link in all conditions. The AR7010 is Flight Log compatible (SPM9540 sold separately).



The Flight Log is an optional component that was originally designed for testing, but now it is offered as a handy device that gives you a clear digital readout of your radio performance. The Flight Log is not required, but for complex aircraft, it provides an intuitive analysis of the overall performance of the radio installation. Some of today’s models can be very demanding. The Flight Log ensures confidence that your system is working properly and you have optimized the radio installation.


The Flight Log provides the following information:

System voltage - receiver pack voltage

Antenna fades – represent the loss of a bit of information on that specific antenna. Typically it’s normal to have as many as 50 – 100 antenna fades on any one of the antennas during a flight. If any single antenna experiences over 500 fades in a single flight, the antenna should be repositioned in the aircraft to optimize the RF link.

Frame Loss – represents simultaneous antenna fades on all attached receivers. If the RF link is performing optimally, frame losses per flight should be less than 20.

Hold – a hold occurs when 45 contiguous (one right after the other) frame losses occur. This takes about one second. If a hold occurs during flight, it’s important to re-evaluate the system, moving the antennas to different locations and/or checking to be sure the transmitter and receivers are working correctly.


DSM2 9-Channel

PowerSafe Receiver

SPMAR9100 $219.99

Key Features

• Robust power bus designed to manage high-current loads
• Dual 16AWG battery input leads with EC3 connectors for use with larger battery packs
• Includes a soft switch that fails "on"
• Includes three remote receivers
• Features SmartSafe technology plus preset failsafe
• Compatible with all Spektrum and JR full range radio systems
• Can add an optional fourth remote receiver (sold separately)
• Flight Log compatible
• US patent 7,391,320

Overview

The AR9100 PowerSafe™ receiver is designed for models using multiple servos that draw excess current or multiple high-torque servos, such as giant-scale airplanes and jet models. It features a robust power bus designed to manage high-current loads, as well as dual 16AWG battery input leads with EC3 connectors for use with larger battery packs.

This makes it possible to support high-current systems straight through the AR9100 without the need for a separate power system. As an added measure of safety, Spektrum designed the AR9100 with a soft switch. Servo current is routed around the switch so, should it fail for any reason, power to the system will not be interrupted. This receiver has a unique aileron configuration which has an additional aileron port. This allows you to plug in a left and a right aileron servo into the receiver independently without using a Y-harness.

TM1000 DSM2 TELEMETRY/MODULE

SPM9548 $56.99

Overview
The TM1000 Telemetry Module transmits important flight information to aircraft telemetry compatible transmitters. The module can provide important Flight Log information such as RF link performance and receiver battery pack voltage. The TM1000 Telemetry Module can also provide flight pack information which could include the flight pack battery for electric powered aircraft, or ignition batteries in gas engine powered aircraft. The module can provide temperature information, as well as RPM with RPM sensors available separately.

This unique receiver design contains a main unit which houses the power bus, and it includes 3 remote receivers which come with one of each: 9”, 12” and 24” remote receiver extensions. The dual path redundancy of Spektrum’s patented DuaLink technology, plus the fact each of the receivers is mounted in a slightly different location, exposes each to a different view of the RF environment and creates a bulletproof RF link in all conditions. You can add an optional fourth remote receiver (SPM9545—sold separately) to further enhance the receiving capabilities of the system for more complex aircraft.

In addition to Spektrum’s exclusive SmartSafe™ technology, the AR9100 gives you the option of using standard user preset failsafe settings. It is also compatible with Spektrum’s optional Flight Log.

DSM 9-Channel

PowerSafe Receiver

SPMAR9100 $219.99

Key Features

• Perfect for parkflyer applications at only 7 grams
• Dual aileron ports
• 5 channels

Overview

The AR500 sport aircraft full range 5-channel receiver is perfect for any of your sport applications where 5 channels or less is required.

 This receiver has a unique aileron configuration which has an additional aileron port. This allows you to plug in a left and a right aileron servo into the receiver independently without using a Y-harness.

10-Amp 6-Volt Regulator

SPMVR6010 $74.99

Key Features

• Brings higher voltage packs within the operating limits of most servos
• Delivers a steady 6 volts ensuring consistent performance throughout the discharge cycle of the battery
• Includes a fail-on switch and 16-gauge heavy-duty input and output wires with EC3 connectors
• Drop-in addition for the AR9100
• Cooling fan provides additional current handling capability
• Convenient mounting lugs

Overview

The VR6010 is designed for high-current draw applications, such as giant-scale airplanes with multiple high-current draw servos.  Spektrum’s model VR6010 6-volt 10-amp regulator allows the use of 2-cell LiPo or 5 to 8-cell NiCd and NiMH receiver packs to power your onboard radio system. A single VR6010 regulator provides 10-amp continuous current (16-amp peaks) making it ideal for most high-current draw applications.  For heavy-duty applications two VR6010’s can be used to provide 20-amp continuous and up to 32-amp peak power. The VR6010 is ideal for use with Spektrum’s AR9100 series PowerSafe receiver and comes pre-wired with EC3 connectors.

DSM2 High Speed 8-Channel Receiver

SPMAR8000 $129.99

Key Features

• 11 Millisecond Frame Rate provides superior speed from stick input to servo output
• 2048 resolution provides smooth transition from stick input to servo movement
• Flight log and telemetry compatible

Overview

Spektrum is committed to offering receivers to modelers in all categories within the hobby, and the AR8000 is no exception to that commitment. The AR8000 is packed with industry-leading features including an incredibly fast input-to-output response with an 11-millisecond frame rate when used with capable transmitters, 2048 resolution for ultra-smooth servo travel, and a compact footprint making it ideal for any application from extreme 3D to competition helicopter performance.
